Alliance Delivery System

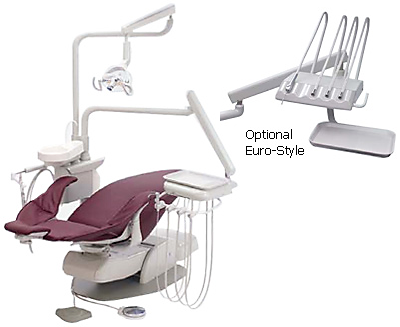

Alliance Dental Unit - Model 1250

Standard Features Part No.
Straight aseptic tubing for three handpieces 70-22120 Yes
Convenient brake release for flex arm   Yes
Master on-off control   Yes
Individual non-retracting water coolant adjustment   Yes
Purge system for handpiece tubing   Yes
Convenient brake release for flex arm   Yes
Plastic B-size tray 70-20633 Yes
Pre-wired with 8 conductor cable for accessory addition   Yes
Wet-dry foot control 70-55R535 Yes
Floor utility center with regulators and shut-off valves 70-19478 Yes

Post-mount utility center
Post-mount utility center with solids collector Yes
Self-contained water system with city water/bottled water selector Yes
Patented quick-switch system for water bottle Yes
QD water connection with flow control Yes
QD water connection with flow control Yes

Assistant’s Instrumentation
Assistant’s telescoping arm with HVE and SE Yes
Assistant’s arm has 4-position holder for instruments Yes

Factory Options   Part No.
Additional handpiece position—up to a total of 4   70-30237 Yes
Additional handpiece position Euro style   70-30296 No
Single tray arm assembly (tray not included)   1080 Yes
Double articulating tray arm assembly (tray not included)   1265 Yes
Stainless steel tray and anti-skid pad   70-30R573 Yes
Touch pad control on unit head for all chair functions
—operates DC1335 & DC1235 chairs		 RH
LH		 70-22587-2
70-22586-2		 Yes
Yes
Porcelain cuspidor   70-20769 Yes
Additional high volume evacuator and hose   70-55R411 Yes
Additional quick-clean syringe with autoclavable tip   3432 Yes
Additional umbilical per foot   70-20130 Yes
Power optic system 120 variable ISO B installed (5-pin)   70-22421 Yes
Power optic system 120 variable ISO C installed (6-pin)   70-22422 Yes
Piezo 115V scaler with power supply   70-30R870 Yes
DELETE telescoping assistant arm     Yes
DELETE telescoping arm and vacuum package     Yes
DELETE handpiece position     Yes
DELETE utility center     Yes
DELETE junction box, frame, and cover     Yes
